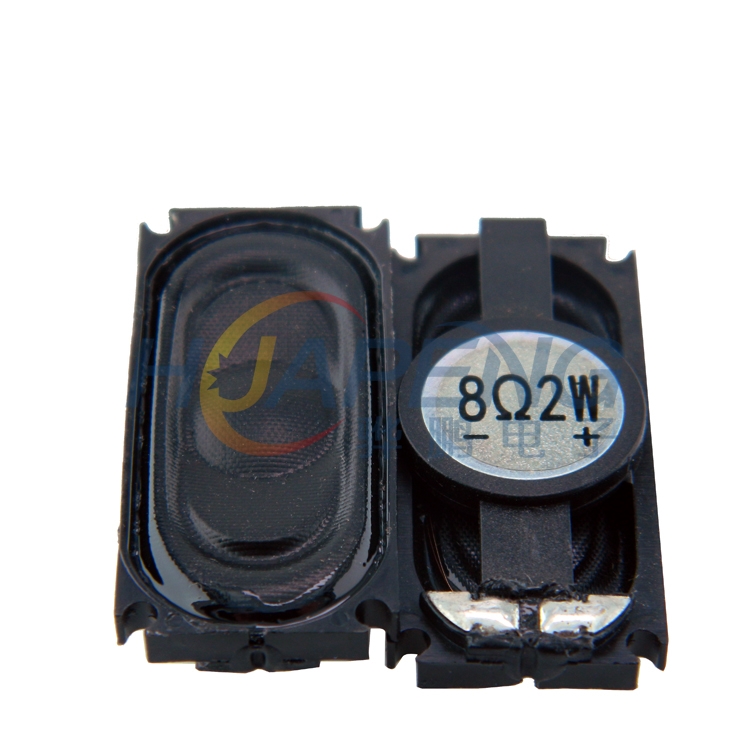

微型喇叭 型号：HP2040S084G8-00规格：20*40mmH8.4mm8Ω2W喇叭

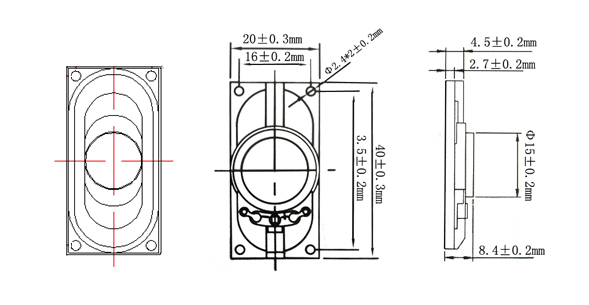

• Size： 20*40mm H 8.4 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 93 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 630 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 1.5 W
• Maximum input power 2 W
• Buzz & Rattle must be normal (at sine wave 3.46 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
