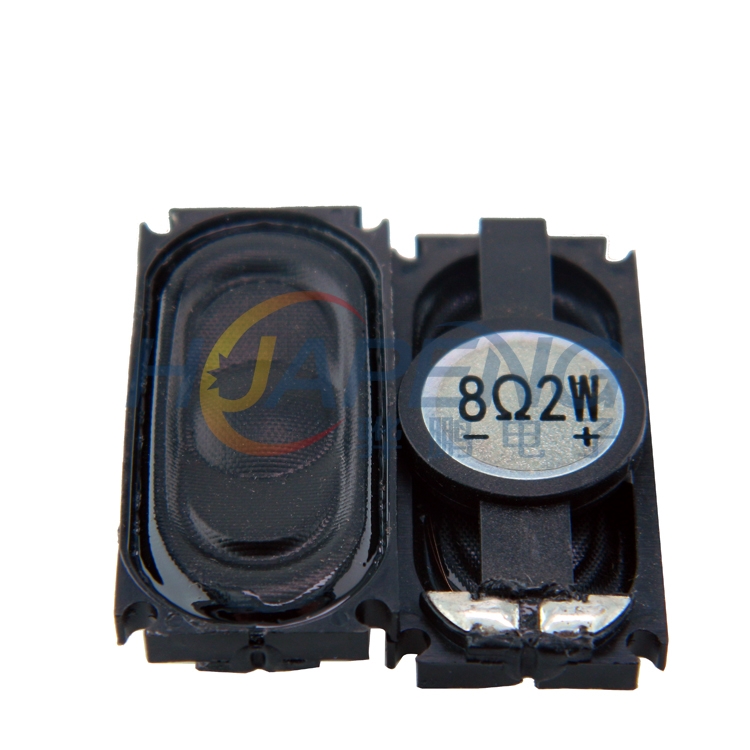

笔记本喇叭型号：HP1635S05G8-00规格：16*35mmH5mm8Ω2W布盆喇叭

• Size： 16*35mm H 5 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 90 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 1250 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 1 W
• Maximum input power 2 W
• Buzz & Rattle must be normal (at sine wave 2.8 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
