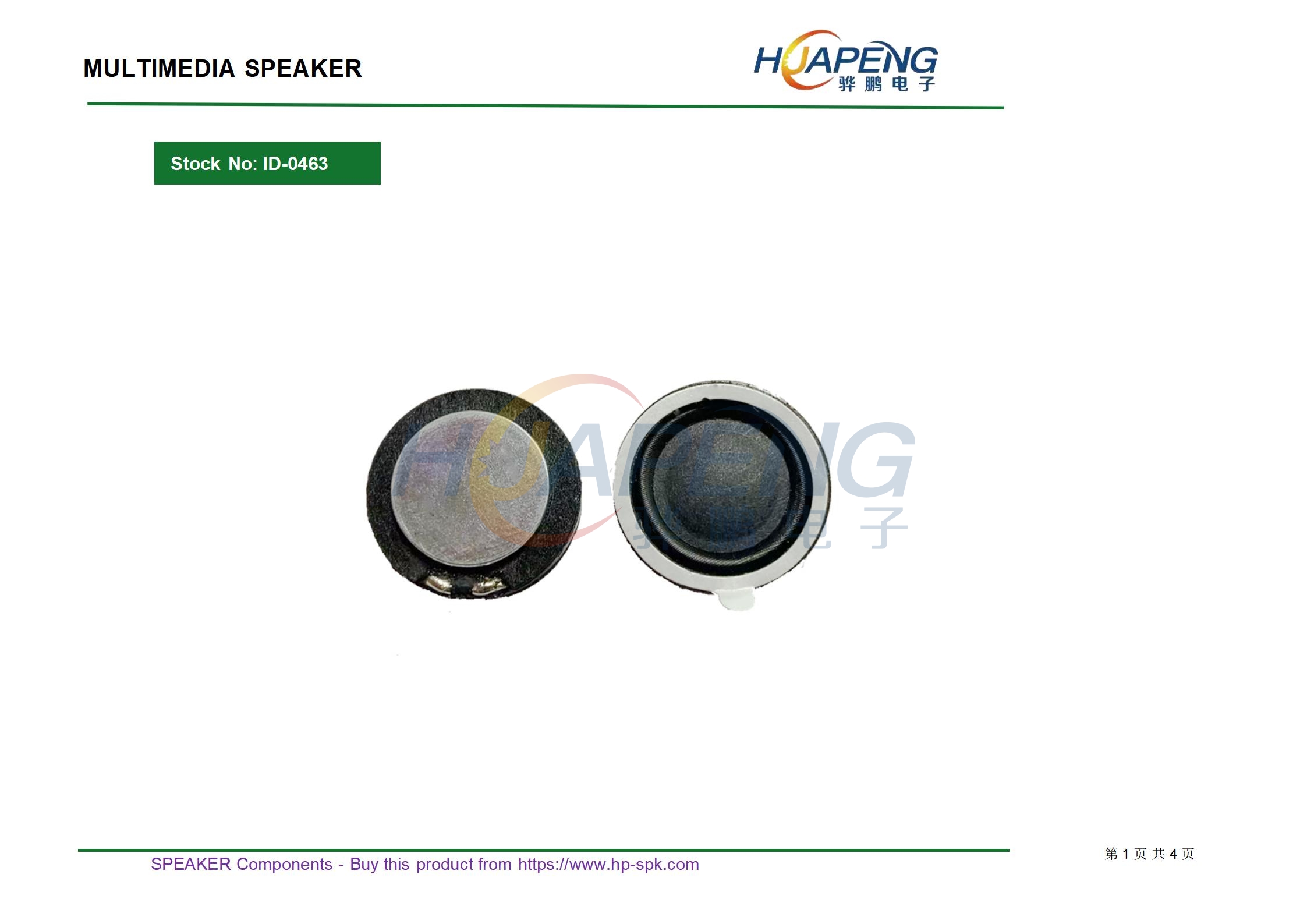

复合膜喇叭型号：HP20S056G8-01C规格：Ø20mmH5.6mm8Ω 2W

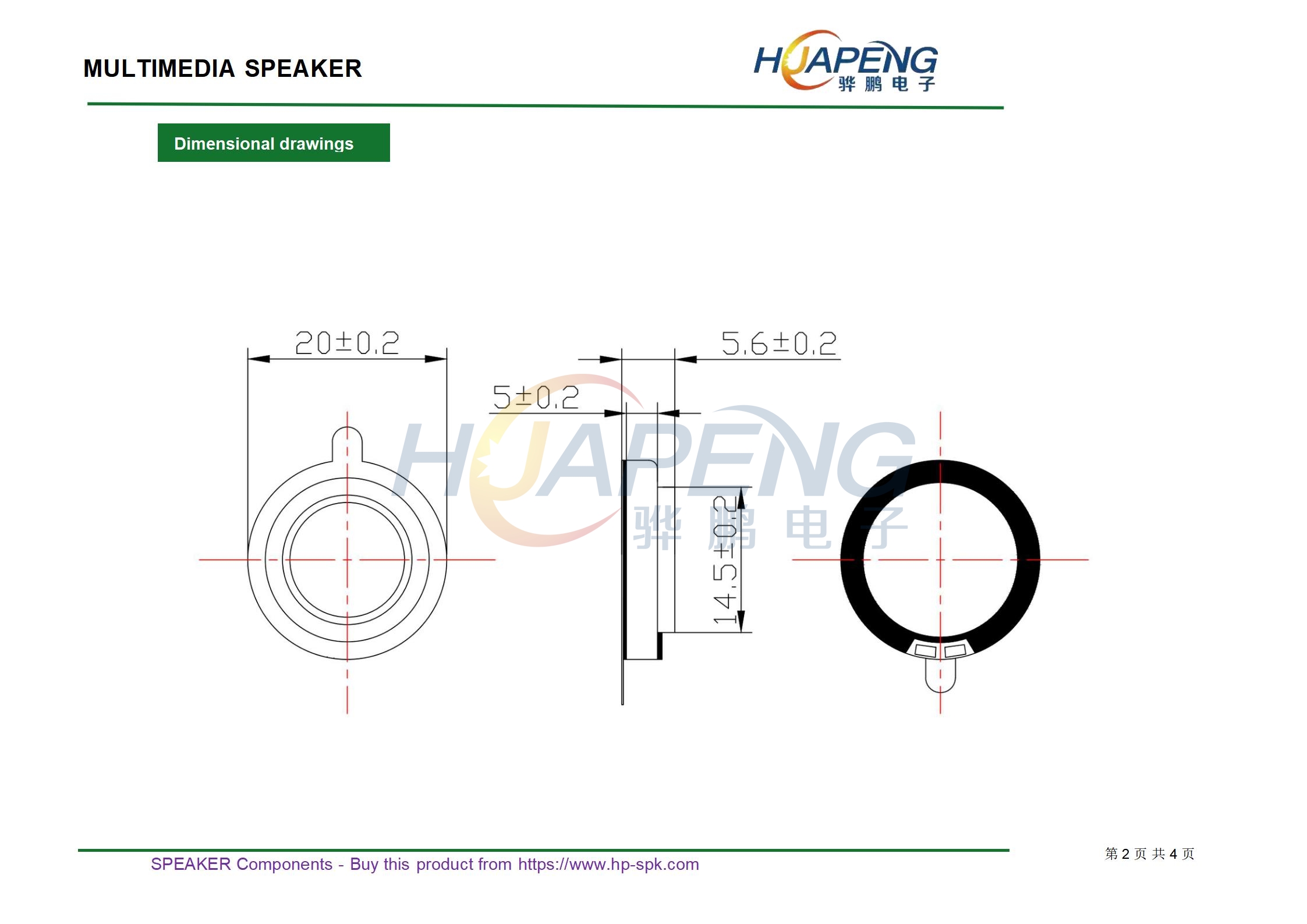

• Size： D 20 mm H 5.6 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 90 ±3dB(at 800,1000.,1200,1500Hz )

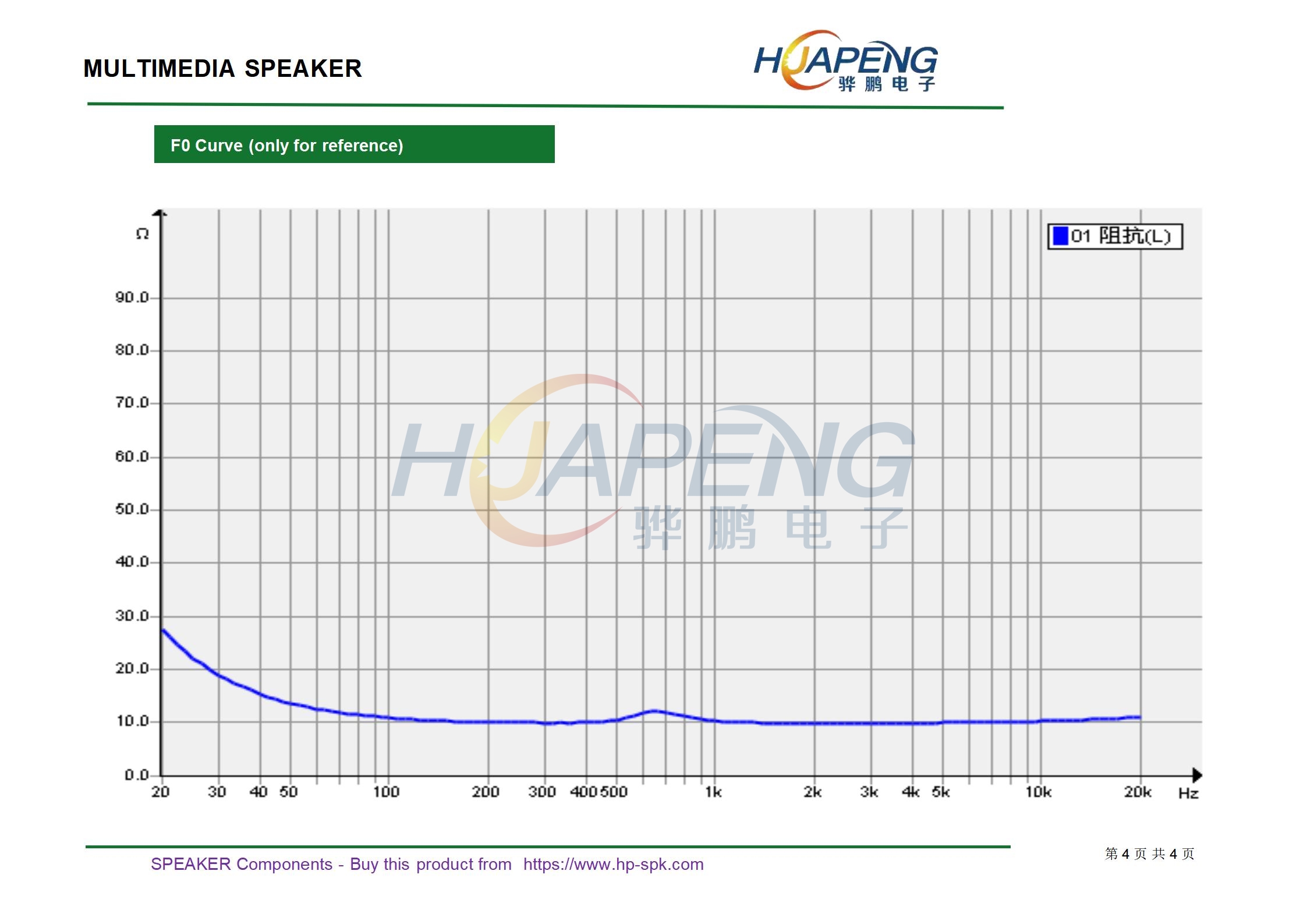

• Resonance frequency 110 ±20% Hz

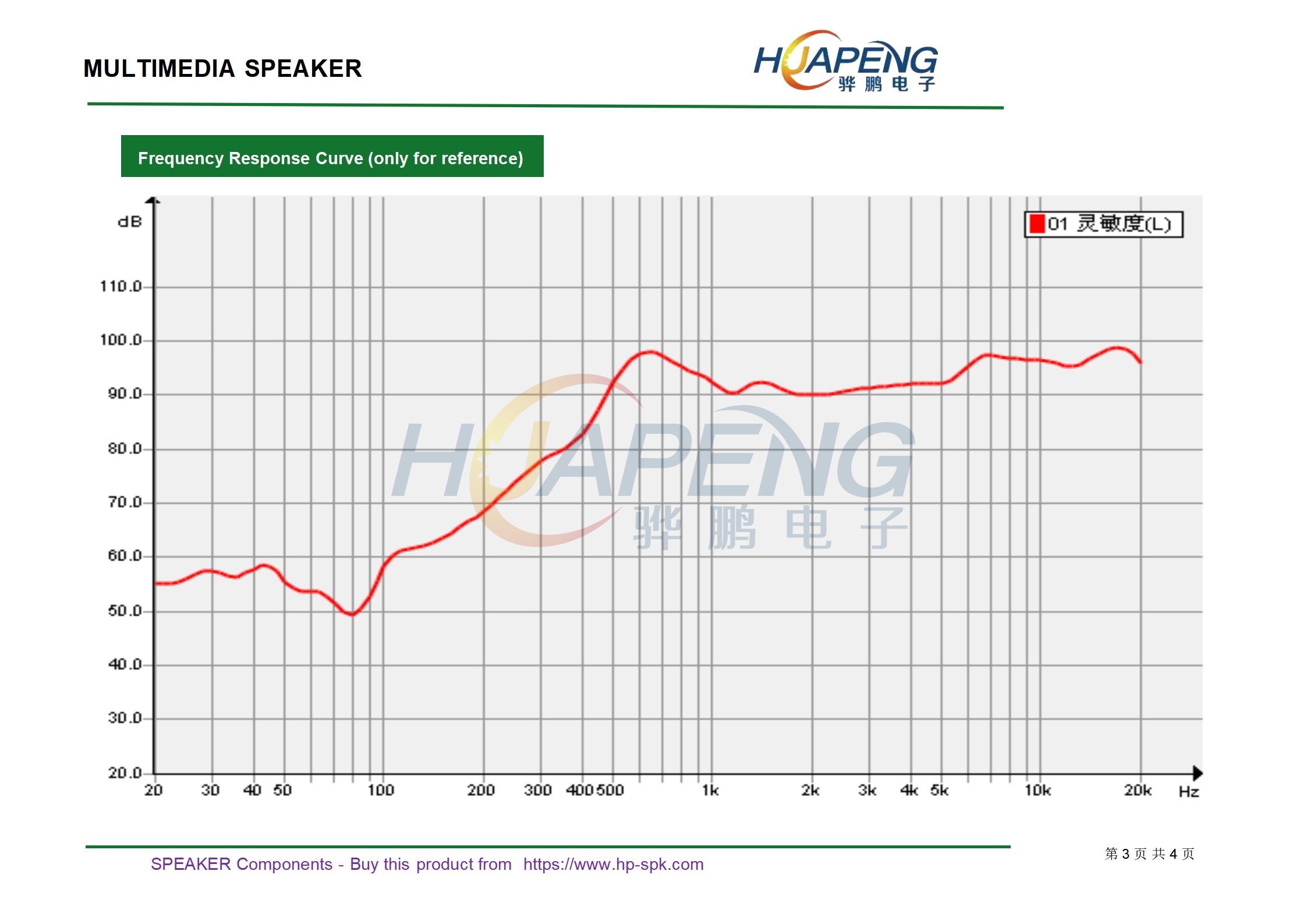

• Frequency Range Fo~10KHz
• Rated input power 1.5 W
• Maximum input power 2.0 W
• Buzz & Rattle must be normal (at sine wave 3.46 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
• Stock No:
