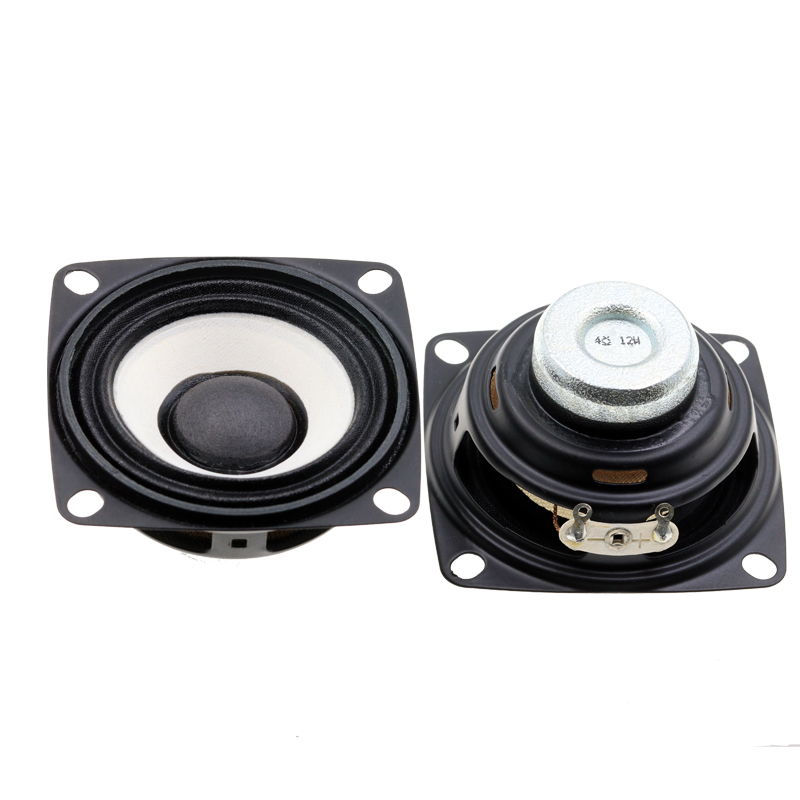

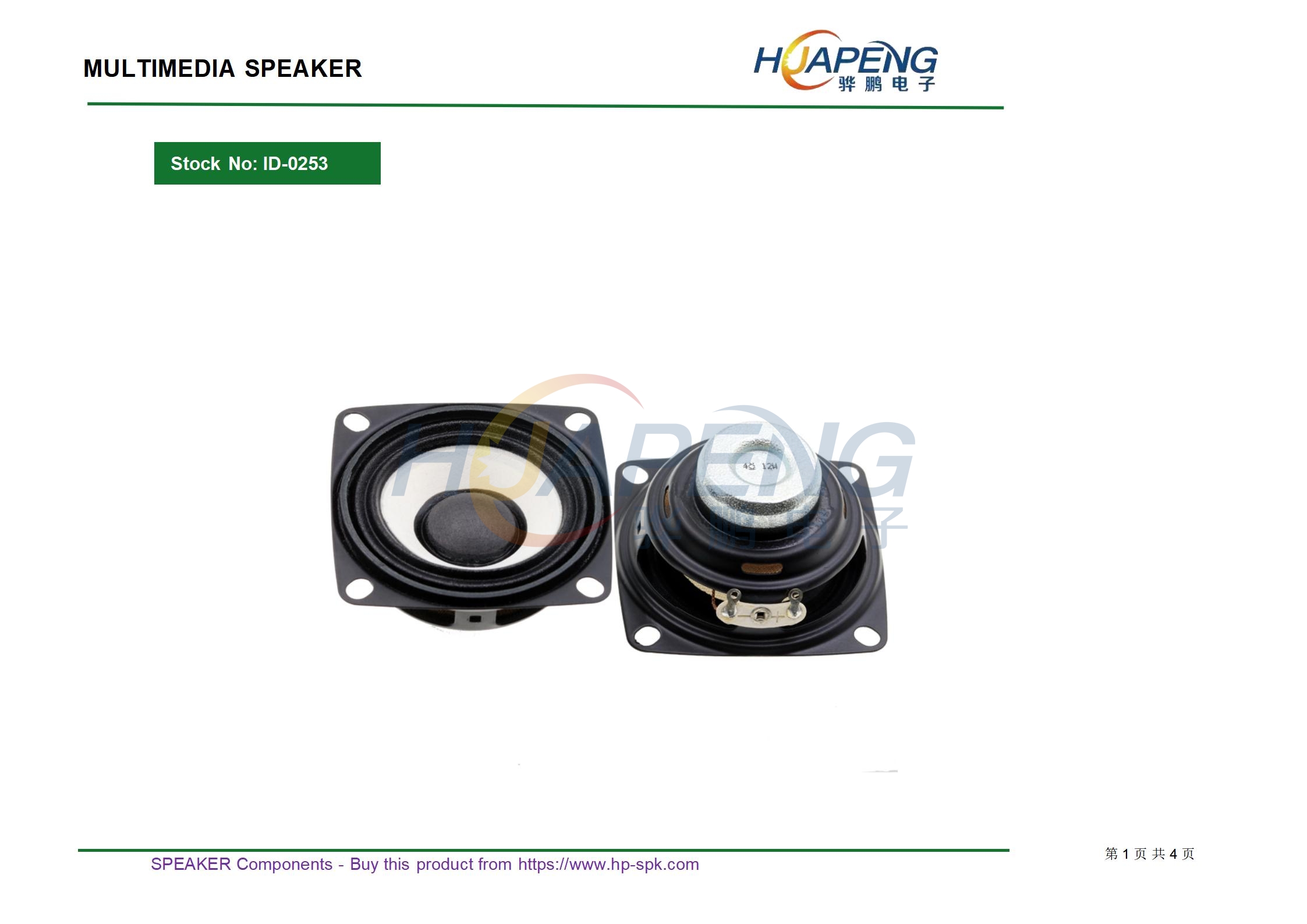

中频喇叭型号：HP053-4C-0253C-C规格：方形53mm4Ω12W布盆喇叭

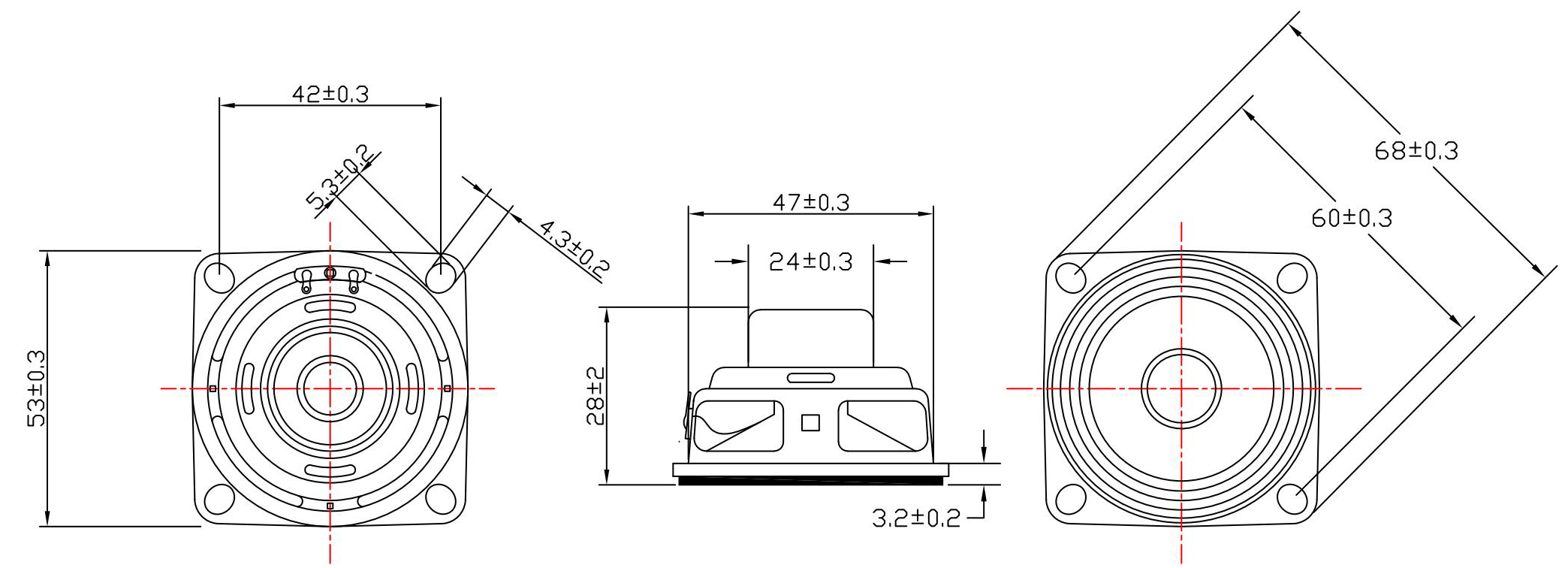

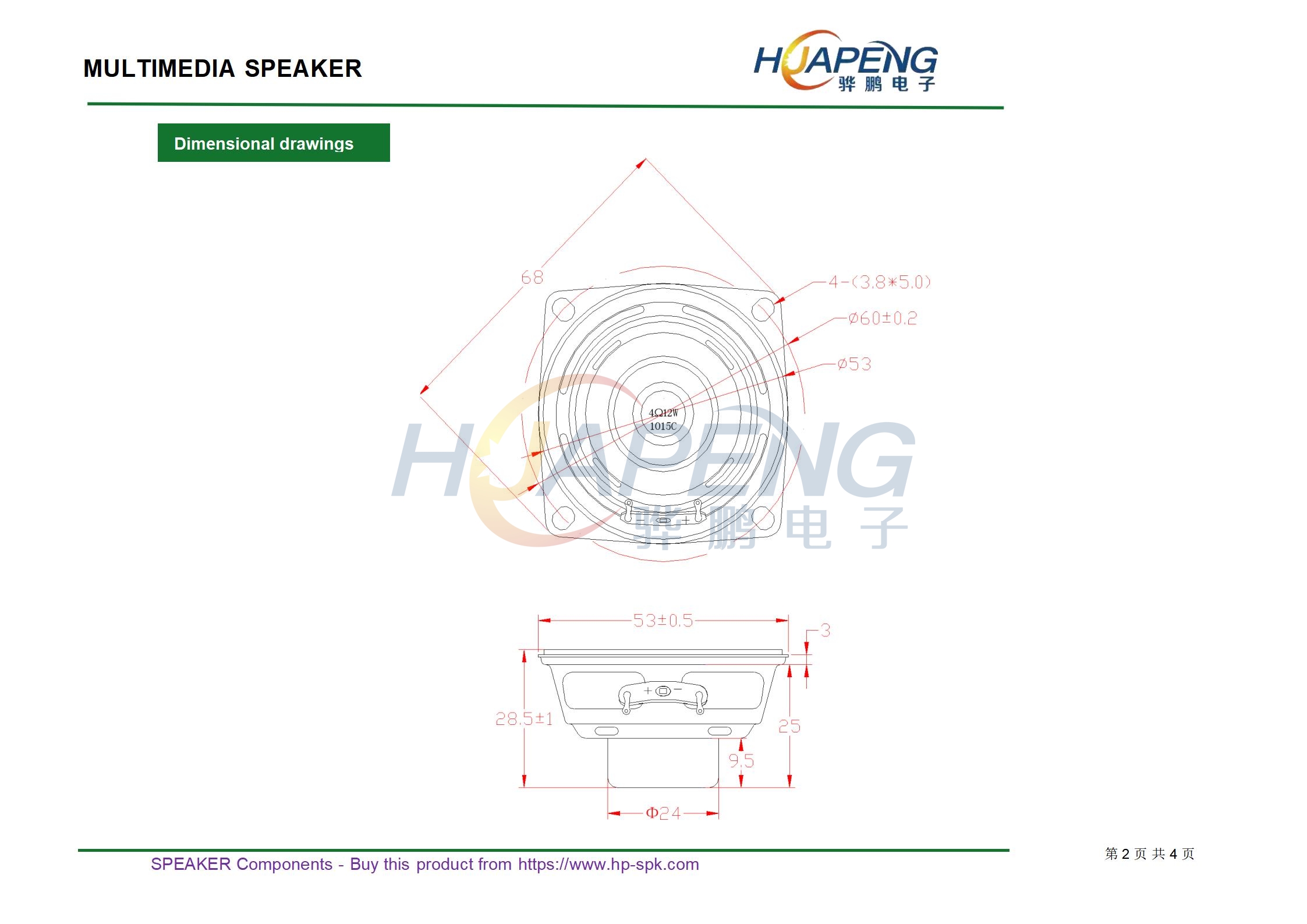

• Size： D 53*53 mm H 28 mm
• Impedance： 4 ±20% Ω

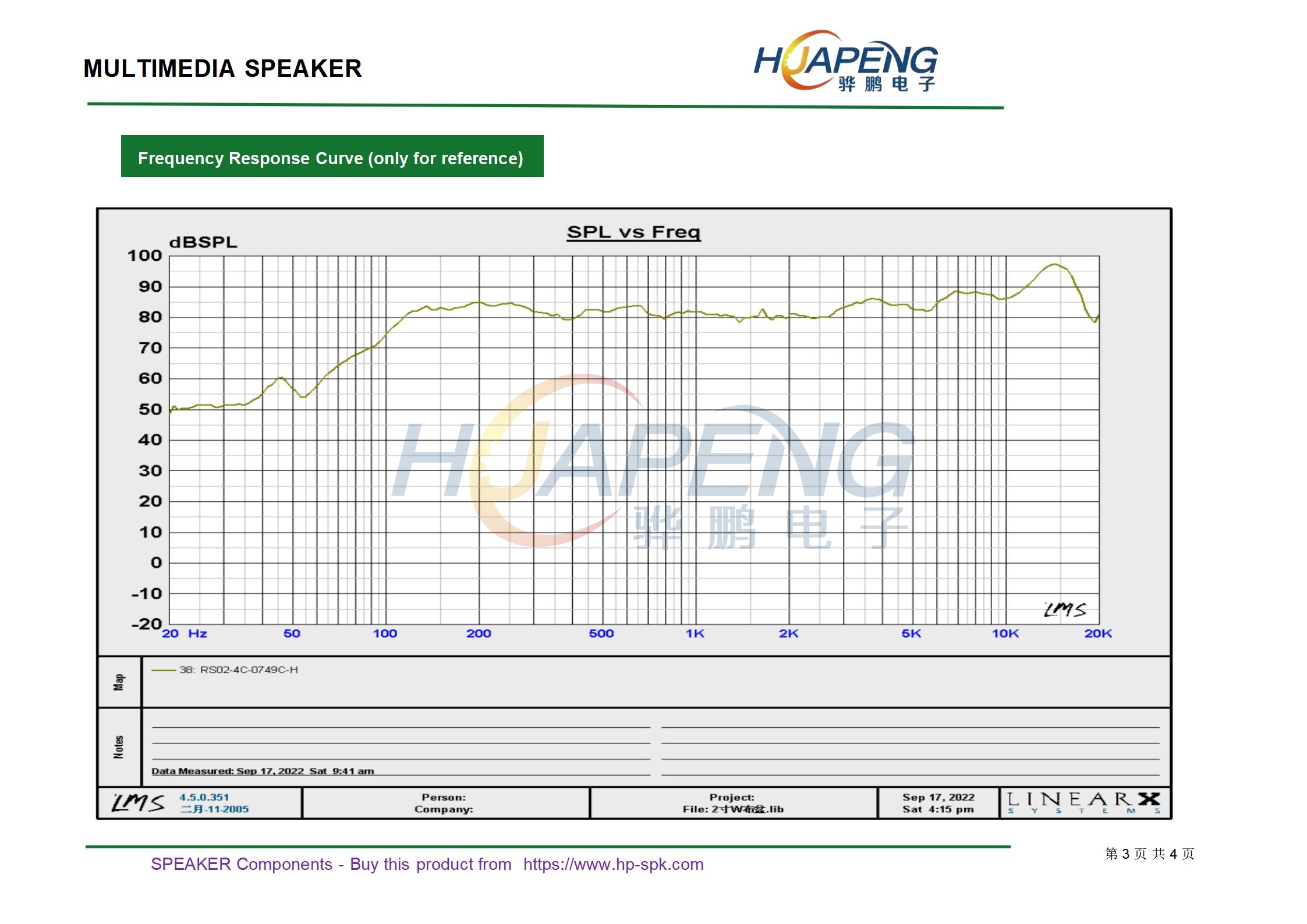

• SPL(1W 1m sine wave) 86 ±3dB(at 800,1000.,1200,1500Hz )

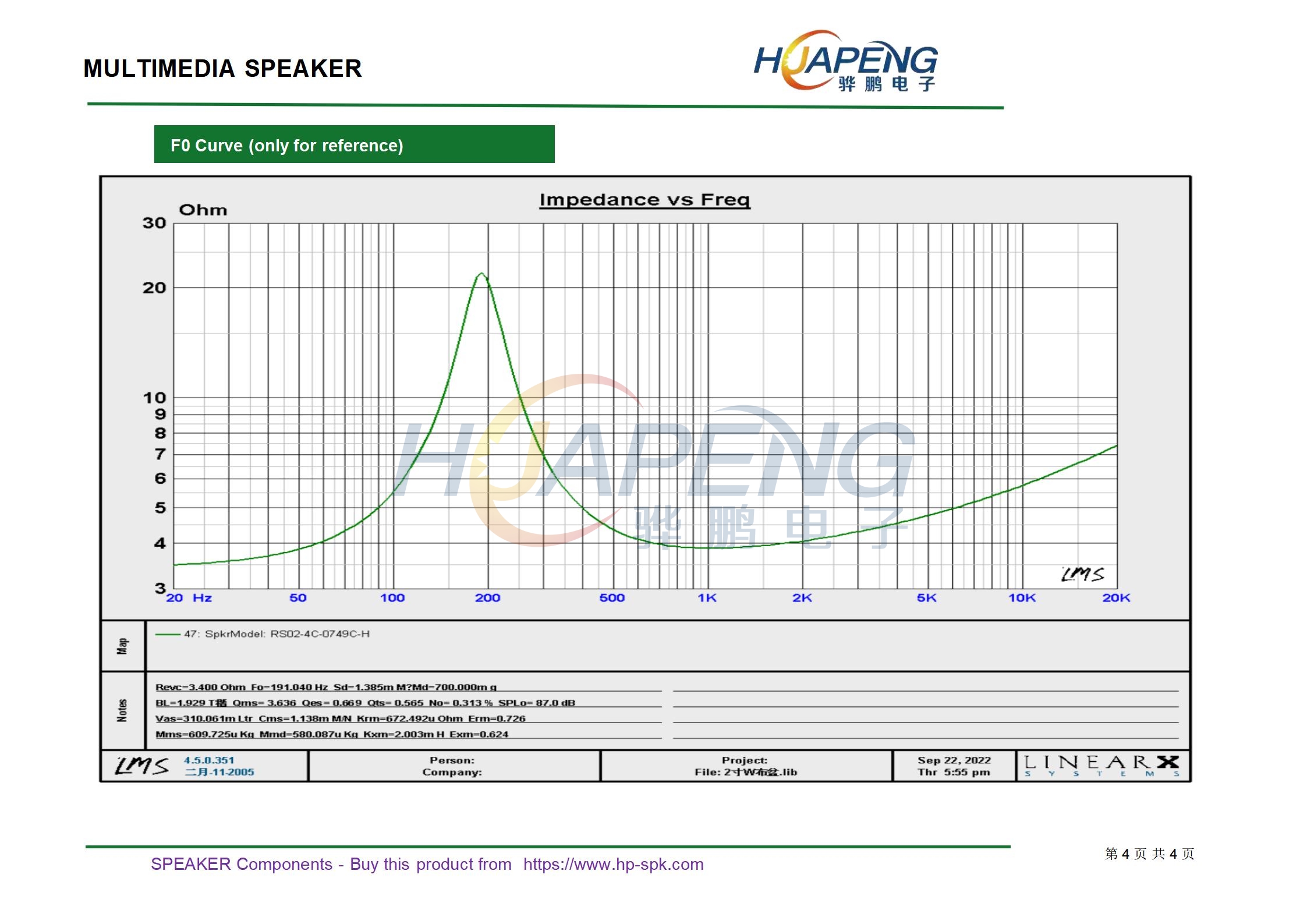

• Resonance frequency 190 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 6 W
• Maximum input power 12 W
• Buzz & Rattle must be normal (at sine wave 4.89 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+70℃
• Storage temperature -20~+70℃
• Environmental Protection Regulation RoHS
