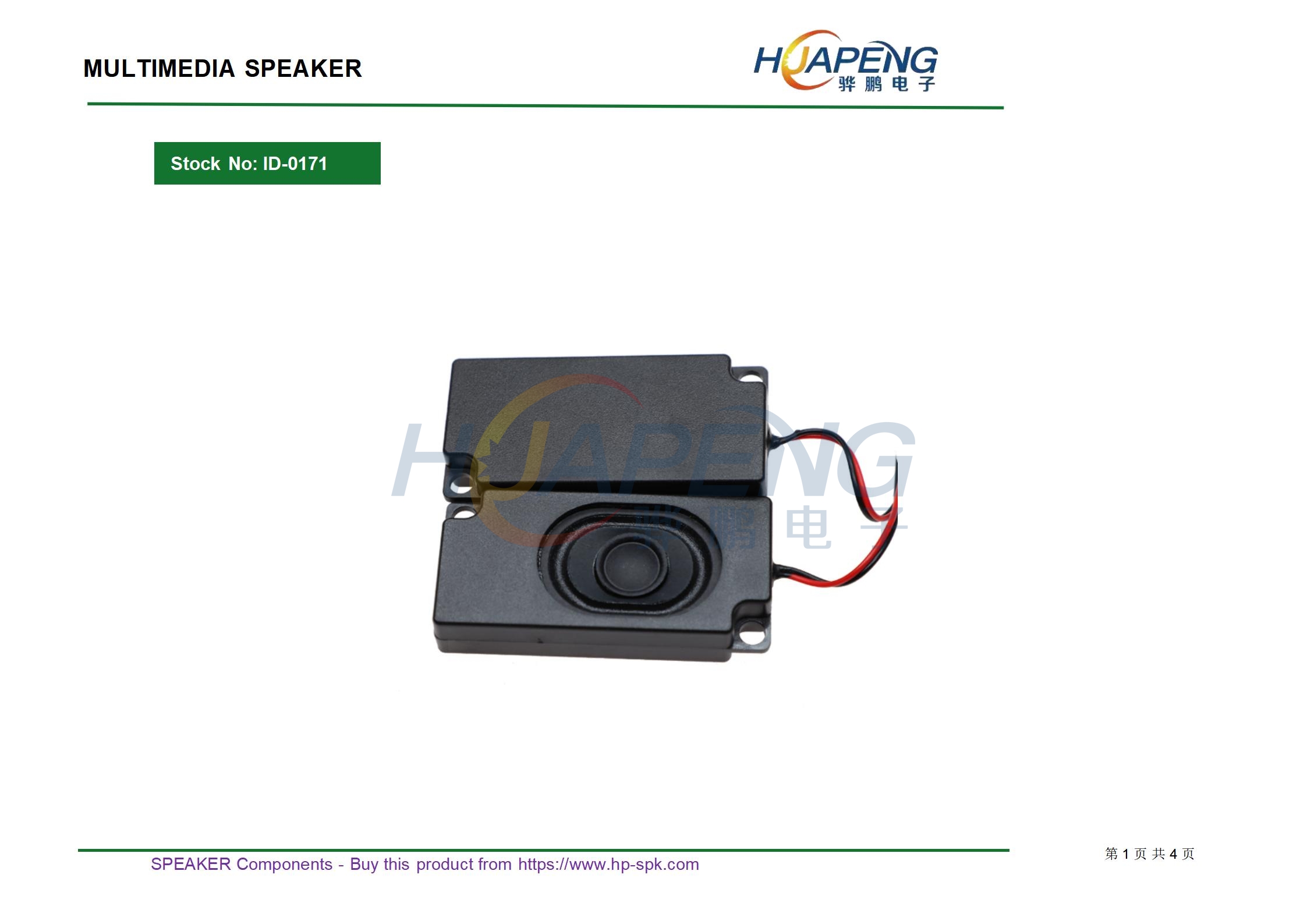

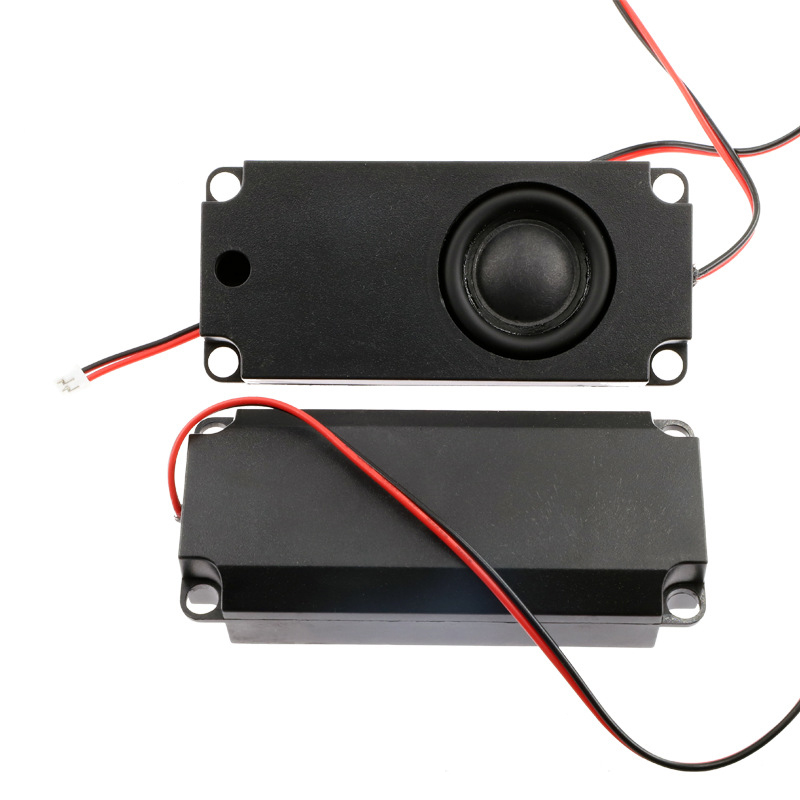

腔体喇叭型号：HP3370BOX4R-4P-125规格：3370BOX4Ω3W带4P端子线

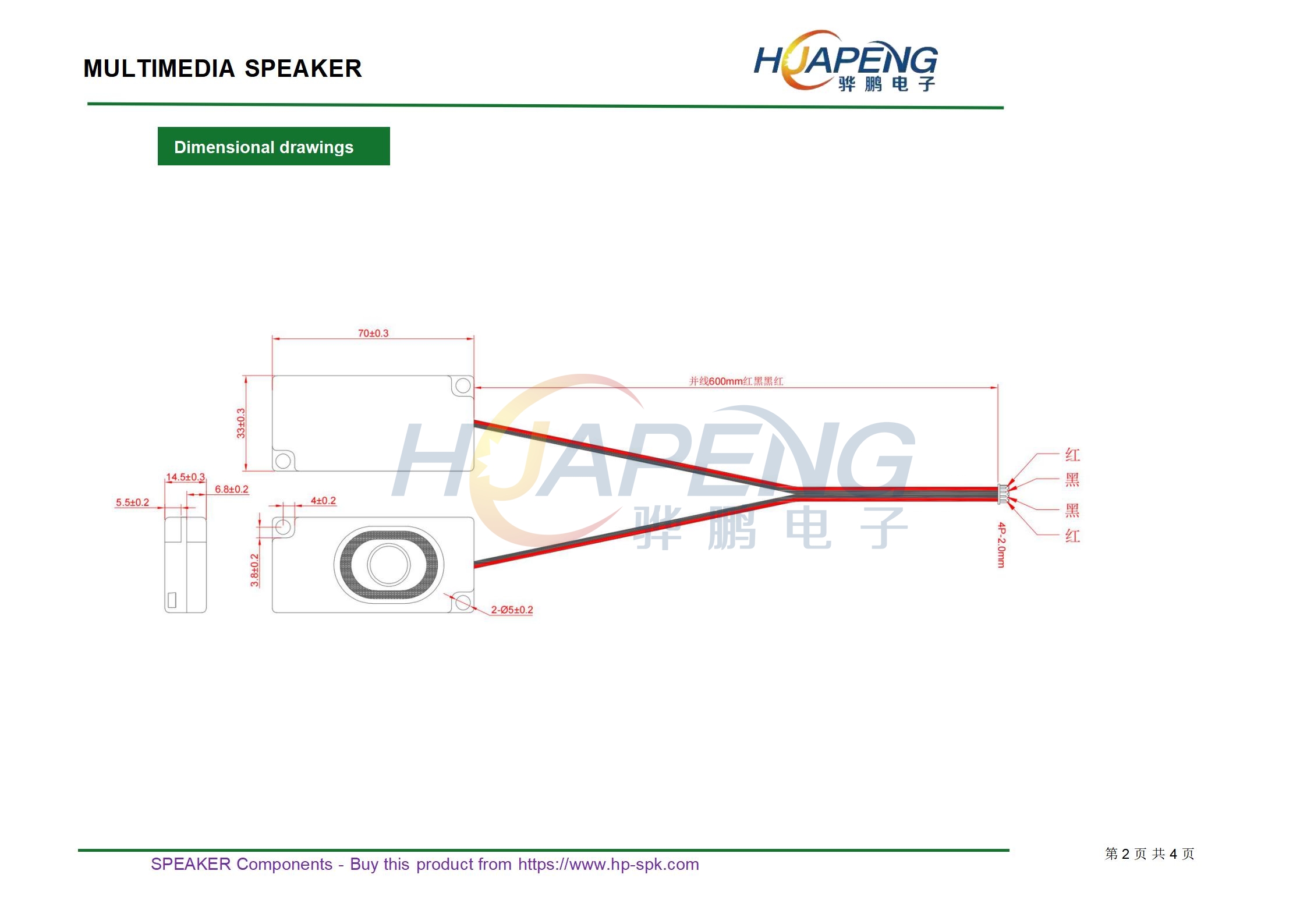

• Size： D 33*70 mm H 14.5 mm
• Impedance： 4 ±20% Ω

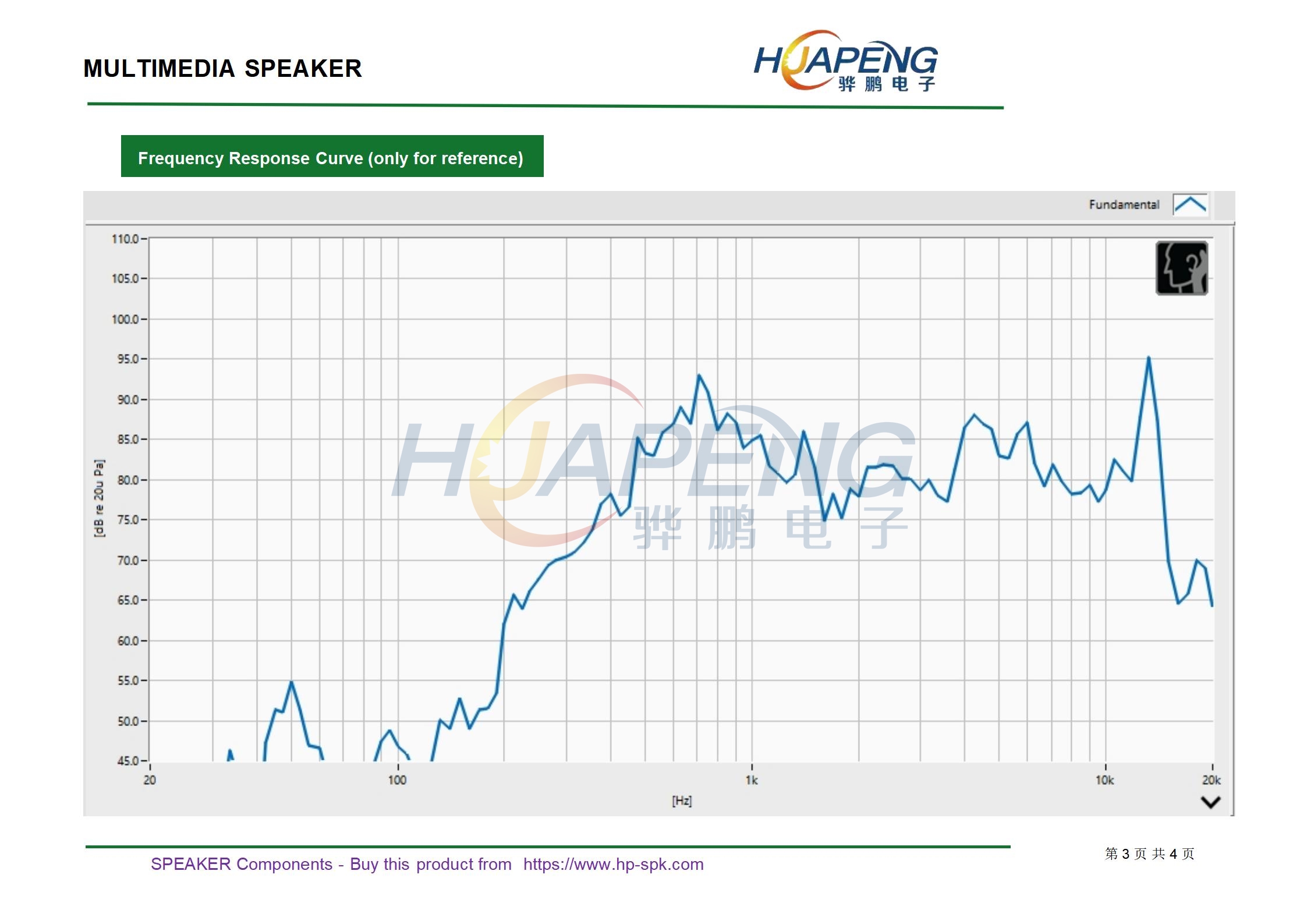

• SPL(1W 1m sine wave) 85 ±3dB(at 800,1000.,1200,1500Hz )

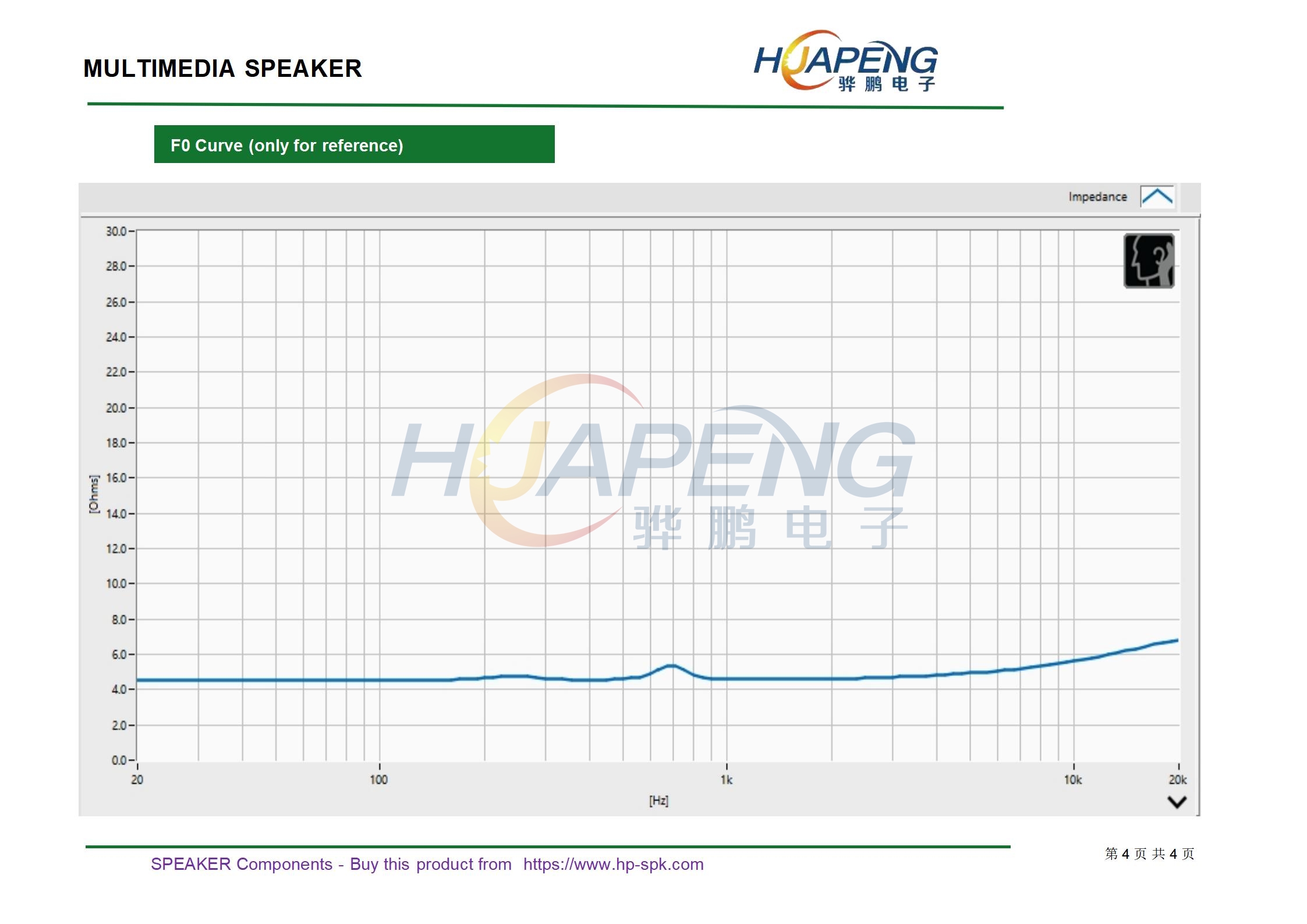

• Resonance frequency 650 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 2 W
• Maximum input power 3 W
• Buzz & Rattle must be normal (at sine wave 2.8 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
