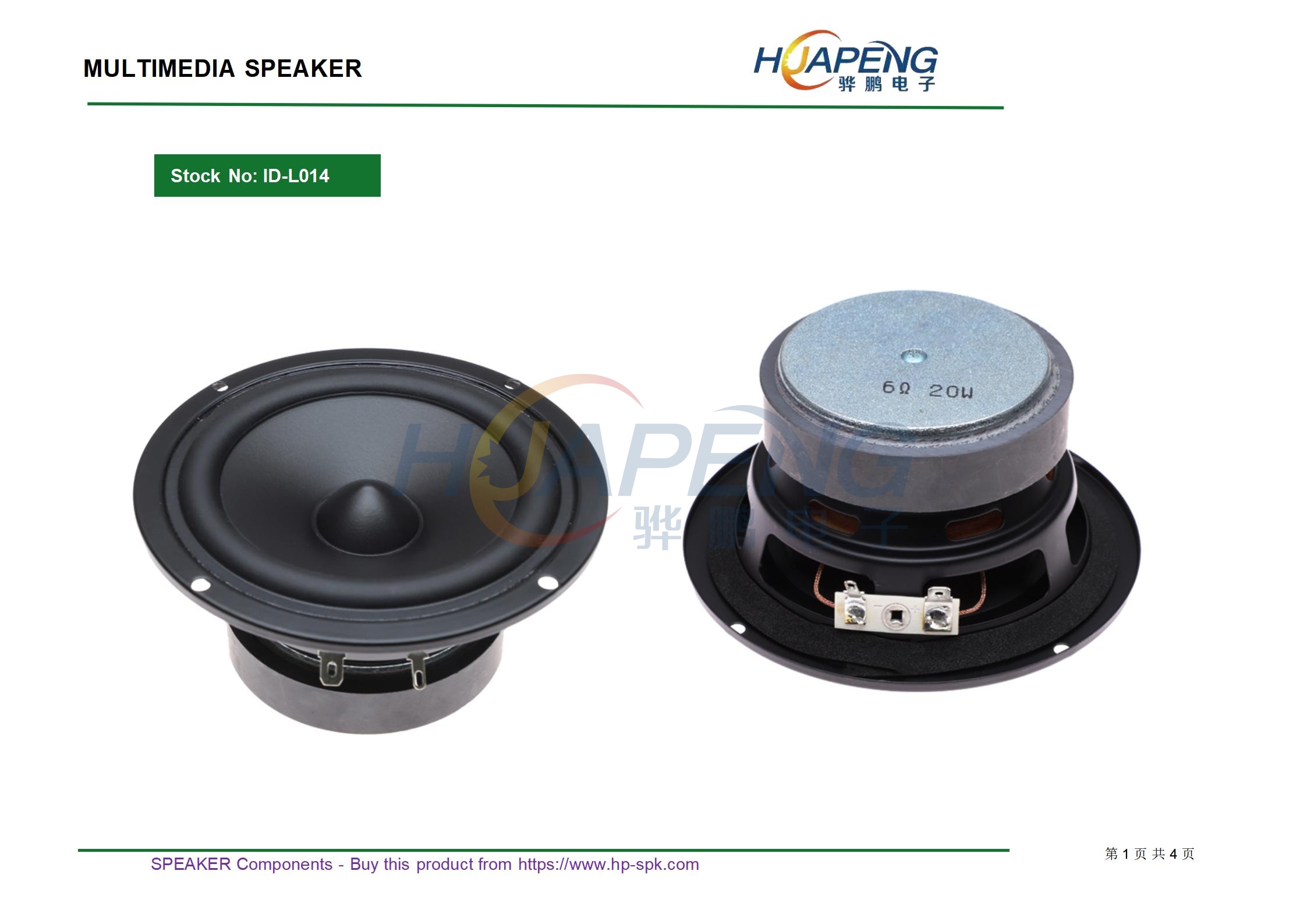

音箱喇叭型号：HP115-6R-0976D-D规格：4寸 6Ω 20W 橡皮盆

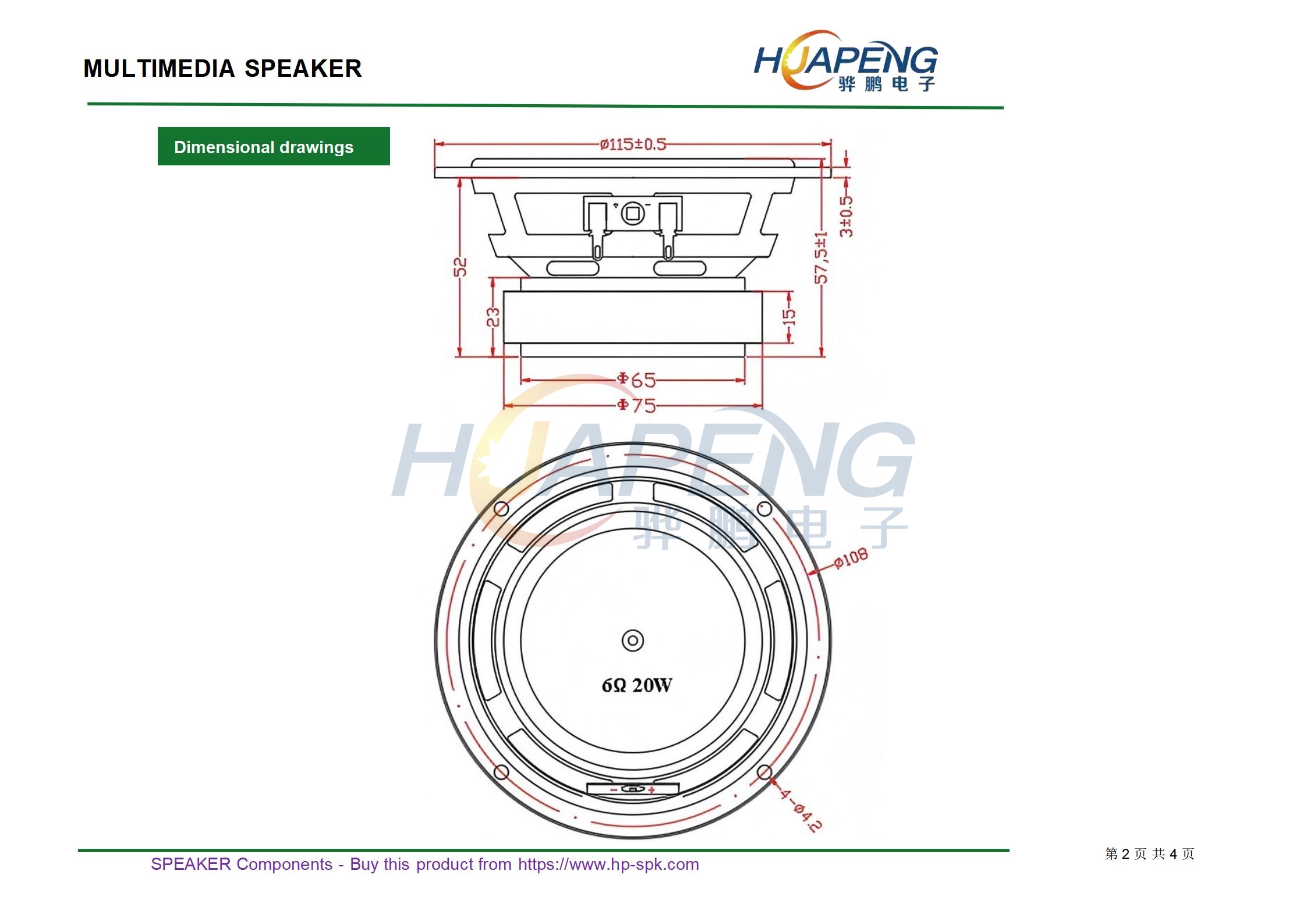

• Size： D115mm H 58 mm
• Impedance： 6 ±20% Ω

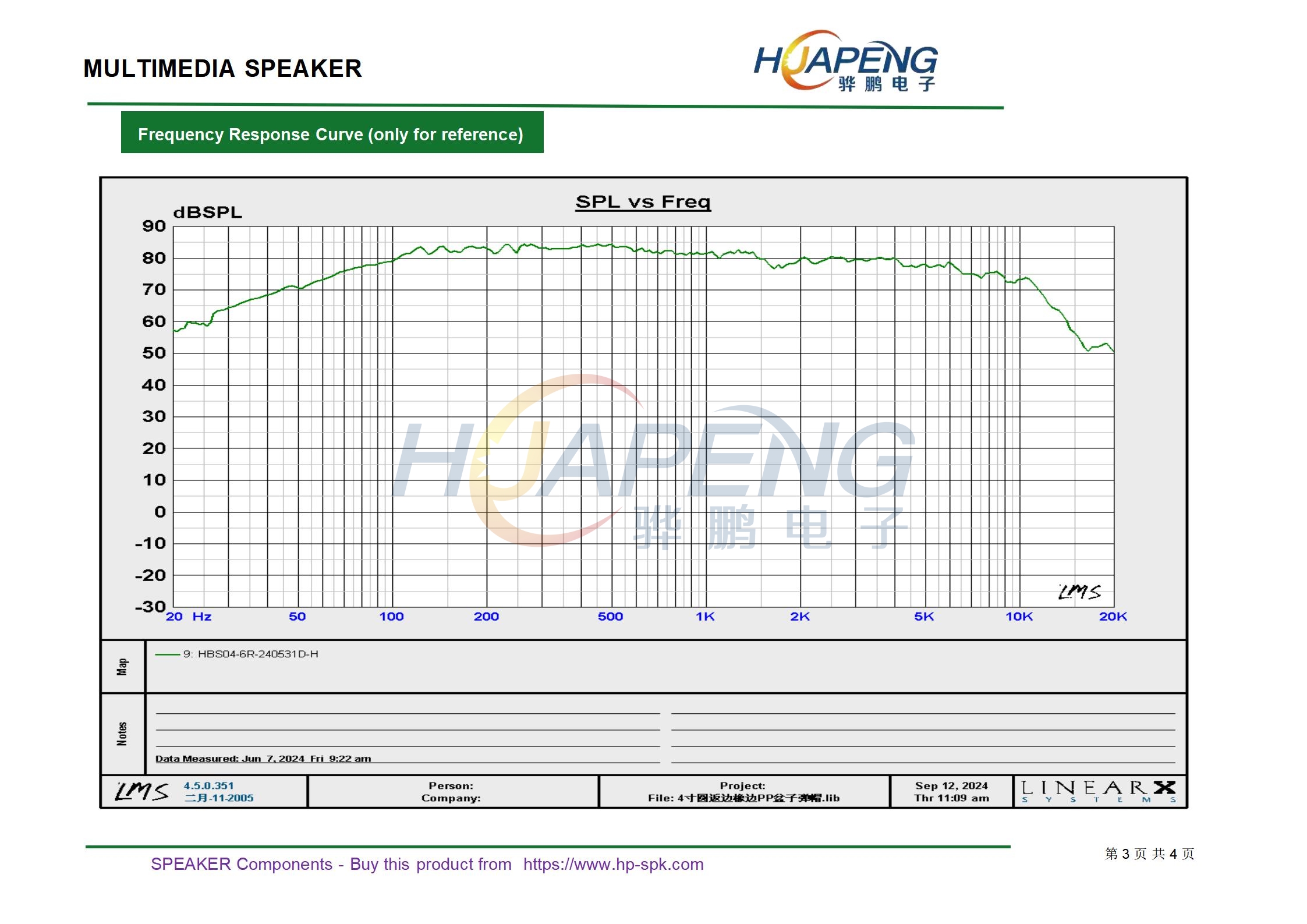

• SPL(1W 1m sine wave) 87 ±3dB(at 800,1000.,1200,1500Hz )

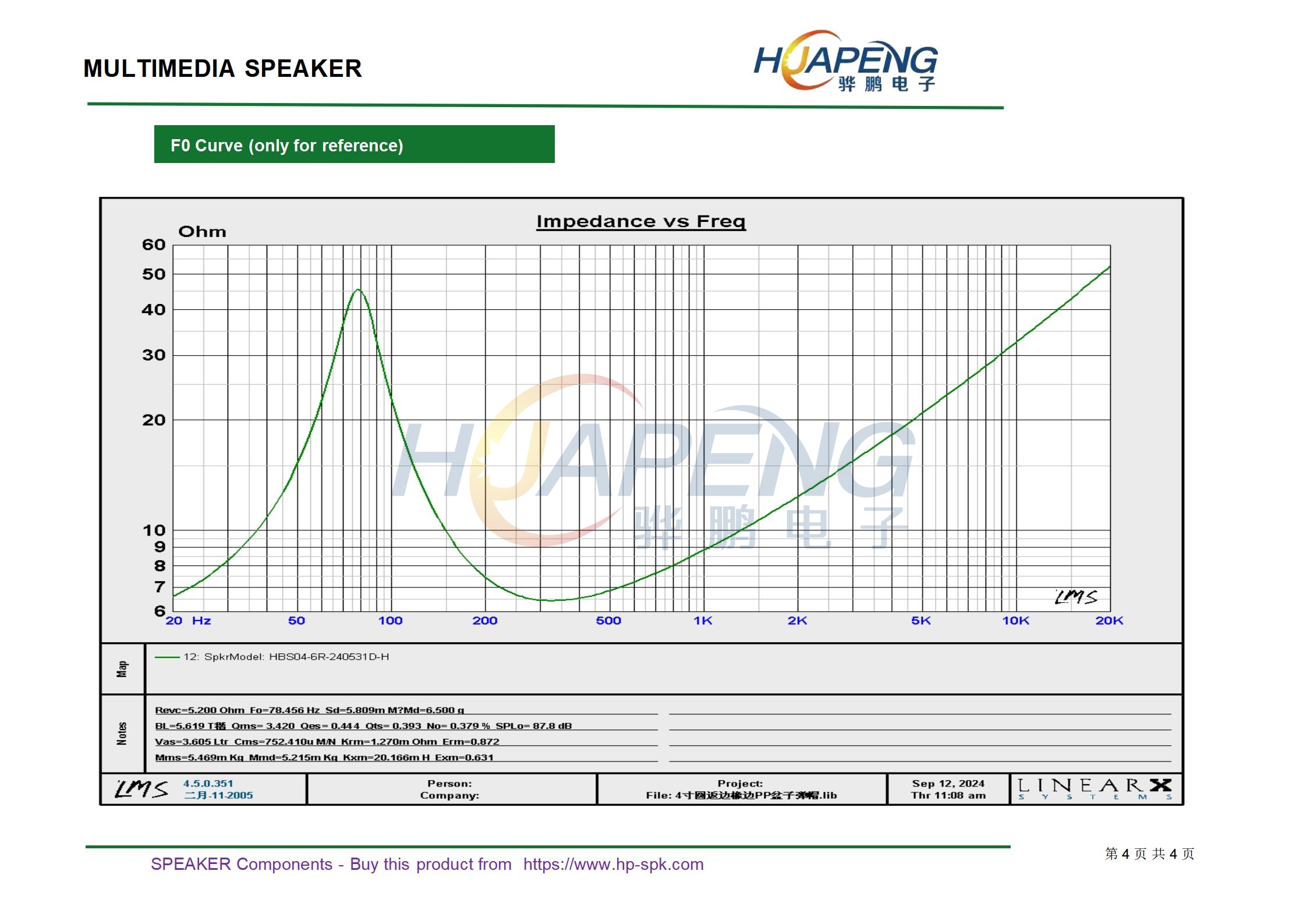

• Resonance frequency 80 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 20 W
• Maximum input power 25 W
• Buzz & Rattle must be normal (at sine wave 10.9 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
