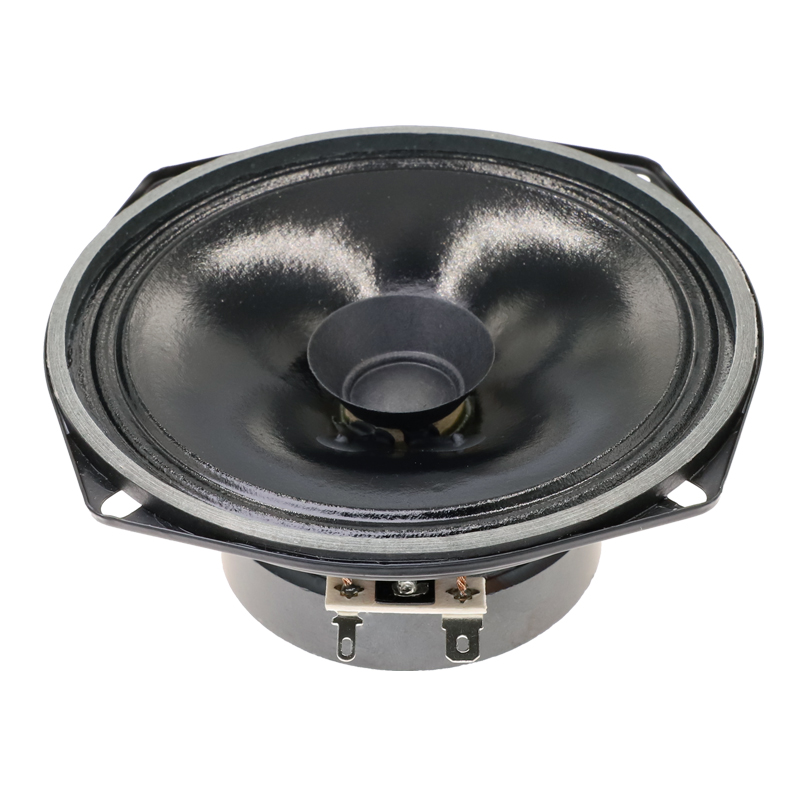

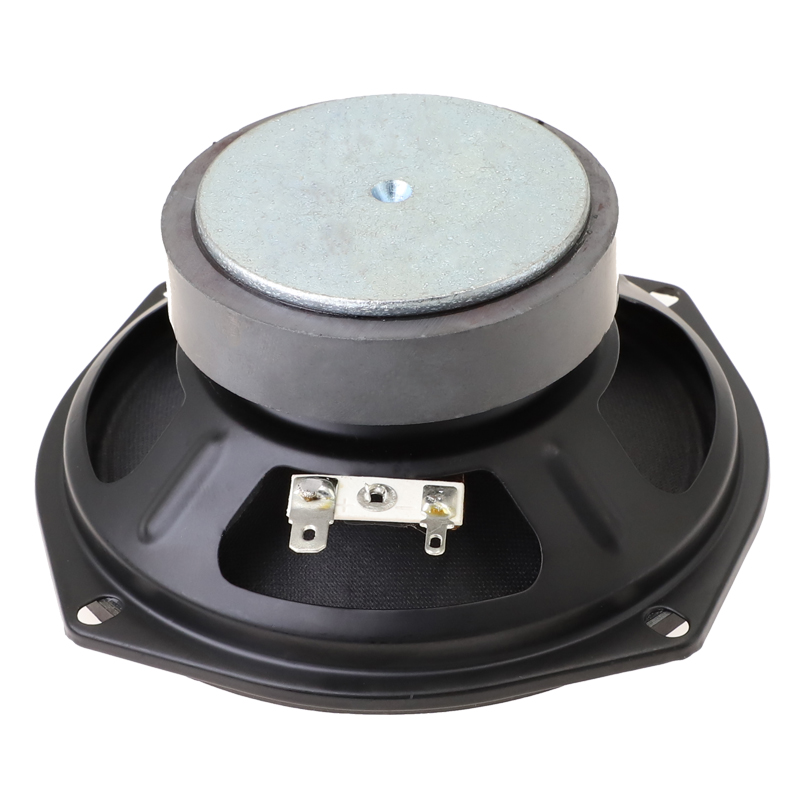

全频喇叭型号：HP-119-4P-0326D-D规格：5寸119mmH53mm 4Ω20W 平弧形70磁全纸高音帽喇叭

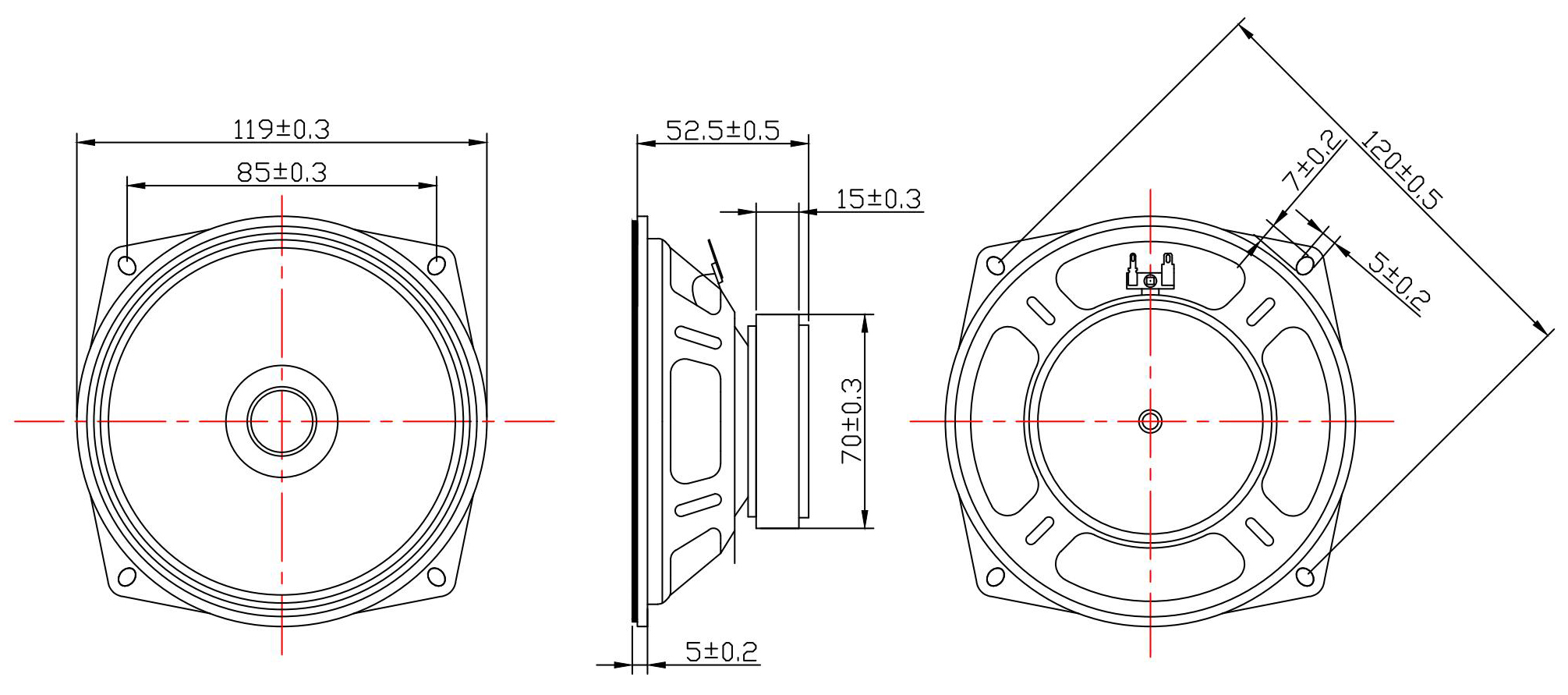

• Size： D 119*119 mm H 52.5 mm
• Impedance： 4 ±20% Ω
• SPL(1W 1m sine wave) 110 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 115 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 15 W
• Maximum input power 20 W
• Buzz & Rattle must be normal (at sine wave 7.75 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
